all pipes 8 axis autocad cnc plasma tube cutting machine

Products Details

1. Applicable to round pipe and rectangular pipe and other square pipe profile production enterprises. 2. Especially suitable for industries such as steel structure, shipbuilding, marine engineering, elevator industry, building curtain wall, bridge tower and construction machinery main parameter1. Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy. 2. Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized DXF SAT software compatibility and lifetime free upgrade process can be modified according to user needs 3. Aiwan’s Advantech industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data. By KASRY professional pipe cutting applications for a seamless connection.

(1), programming Programming can be directly on the machine or offline editor. Using input cutting parameter selection menu type, such as outside diameter, wall thickness, bevel Angle, deviation, compensation data, and so on.

(2), loading and unloading of workpiece Operator initiator on the machine, the pipe placed in the tray by hoisting tools.

(3), measurement level Operators according to pipe diameter deviation with a header hand lever level adjustment.

(4), pipe locking With adjustable Four claw automatic centering chuck locking pipe diameter.

(5), the open cut Move the cutting head to the tube cutting, automatic positioning device automatically according to the procedure under a cut, to complete the cutting process and according to the programming.

1.Perfectly compatible with Tekla round pipe modelling.

2.Support end hole, slot and bevel cutting.

3.Support Second development of autopipe at AutoCAD.

4.Super high nesting speed and usage rate.

5.Break, Mirror, left&right, G code.Professional nesting software——PipeNest, with optimization function.Support offshore AWS small angle cutting process.

Mode

Pipe CNC cutting machine(3 to 8 axis)

Cutting range

6m 9m 12m( customized )

Cutting method

Flame/plasma

Flame cutting speed

20—700mm/min

Plasma cutting speed

20—4000mm/min

Control system

Advantech industrial computer

Plasma Max. hole thickness

14mm

Plasma Max. edge cutting thickness

18mm

Plasma torch crash protect system

yes

Driving mode

servo

software

KASRY pipe apply software

tube cutting machine5 tube cutting machine6 tube cutting machine7

1. One year warranty for whole machine 2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines. 3. Full stock of spare parts and consumables are at competitive price.

YOMI is professional on CNC cutting machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc plasma cutting machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.

1. What kinds of after-sales service can your company supply? One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service.

2. Can you supply OEM Service? Yes, we can supply OEM service.

3. What is deliver time? We will delivery the goods within 15-20 work days after received payment.

4. What is your payment term? We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.

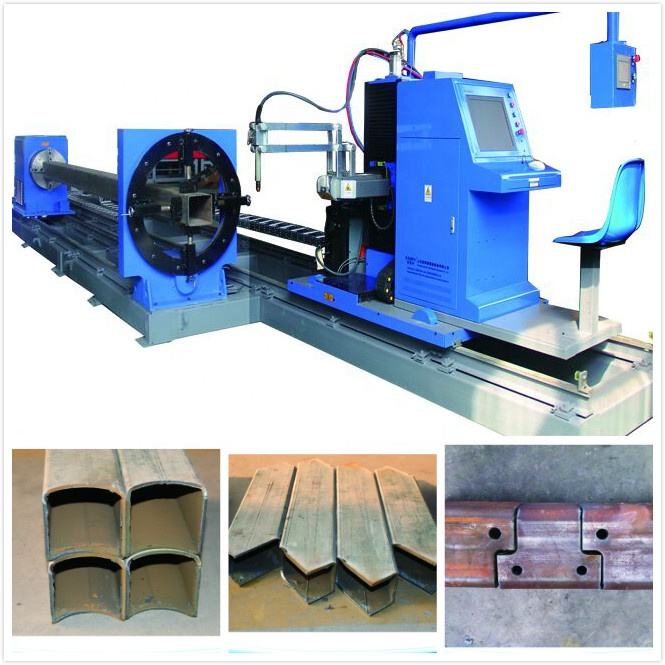

cnc plasma tube cutting machine With high degree of automation and cutting quality.It has the characteristics such as optimizion material, variety of programming and so on.Has the complete range of welding beveling type,with the perfect docking to TEKL A.lt can generate G codedirectly, 3D simulation operation, node expansion, ultra long pipepartition,pipe optimization and other management functions.

Moving axis

Choose cutting axis

Range of activities

Y1 axis :

Pipe rotary driving shaft

360 ° free rotation

Y2 axis :

Pipe driven rotation shaft

360 ° free rotation

X1 axis

The spindle box moves back and forth along the length of the tube

The maximum stroke 13000mm

X2 axis

The trolley moves along the length of the tube

The maximum stroke 12000 mm

A axis

The torch swings along the radial direction of the pipe

±60°

B axis

The torch swings along the length direction of the tube

±55°

Z axis :

Torch move up and down

Travel 320mm

U axis

The trolley moves along the radial direction of the tube

Move back and forth 300mm
